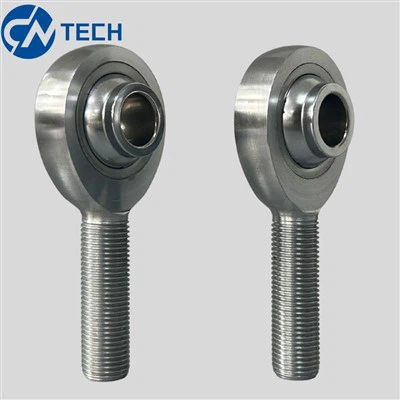

Product Introduction
| Body/Housing | Polished, hard chromoly plated |
| Ball | high strength steel 52100,heat treatment, hard chrome plating. |
Technical Parameters
Rod ends Offset slot injection
|
Part No. |
Data sheet-inch Offset rod ends slot injection |
|||||||||||
|
Male Type |
d +.0015 -.0005 |
B +.000 -.005 |
G Thread 3A/2A |
C1 Ref. |
O +.01 -.01 |
d2 +.01 -.01 |
h +.015 -.015 |
l1 +.062 -.031 |
Ball Dia. Ref. |
a° » |
Radial Static Load » (klbs) |
Weight »(kgs) |
|
XM8-10 OFF |
.5000 |
.625 |
5/8-18 |
.500 |
.688 |
1.313 |
2.950 |
2.000 |
0.937 |
12 |
16.9 |
0.210 |
|
XM10 OFF |
.6250 |
.750 |
5/8-18 |
.563 |
.688 |
1.500 |
2.950 |
2.000 |
1.125 |
13 |
18.5 |
0.230 |
|
XM12 OFF-1 |
.7500 |
.875 |
3/4-16 |
.687 |
0.750 |
1.750 |
3.125 |
2.000 |
1.312 |
14 |
28.1 |
0.295 |
|
XM12 OFF-2 |
.7500 |
.875 |
3/4-16 |
0.687 |
0.825 |
1.750 |
3.875 |
2.500 |
1.312 |
14 |
28.1 |
0.385 |
|
XM12-14 OFF |
.7500 |
.875 |
3/4-16 |
.765 |
1.250 |
2.000 |
3.375 |
2.000 |
1.375 |
8 |
43.7 |
0.575 |
|
XM14 OFF |
.8750 |
.875 |
7/8-14 |
.765 |
1.250 |
2.000 |
3.375 |
2.000 |
1.375 |
8 |
45.1 |
0.545 |
|
BODY |
BALL |
SELF-LUBR |
LH&RH |
|
Chrome molly 4135, heat treated, surface zinc plated or black oxide |
Bearing steel 52100 Harden and hard chrome plated |
PTFE with Nylon reinforced composite |
add "L" or "R" to prefix to number, example: XML8-10OFF |
FAQ
Q: How do we ensure quality?
A: We always provide pre production samples before mass production. We have a quality control department conducting final inspections before shipment .
Q: How do I get samples?
A: If we have product in stock, free sample could be provided. If not, we will send over similar product for reference, or make sample for approval with additional cost.
Q: What is the preparation time?
A: We can negotiate inventory samples for 2-5 working days and bulk orders for 30-45 days.
Q: What are my packaging options? Can you support my private label?
A: Yes. We offer everything from standard industrial packaging to custom color boxes and white-labeling with your logo and barcode.
Q: Can I visit our factory before placing an order?
A: Of course, welcome to visit our factory. Please notify us in advance and we will pick you up at the airport or train station.
